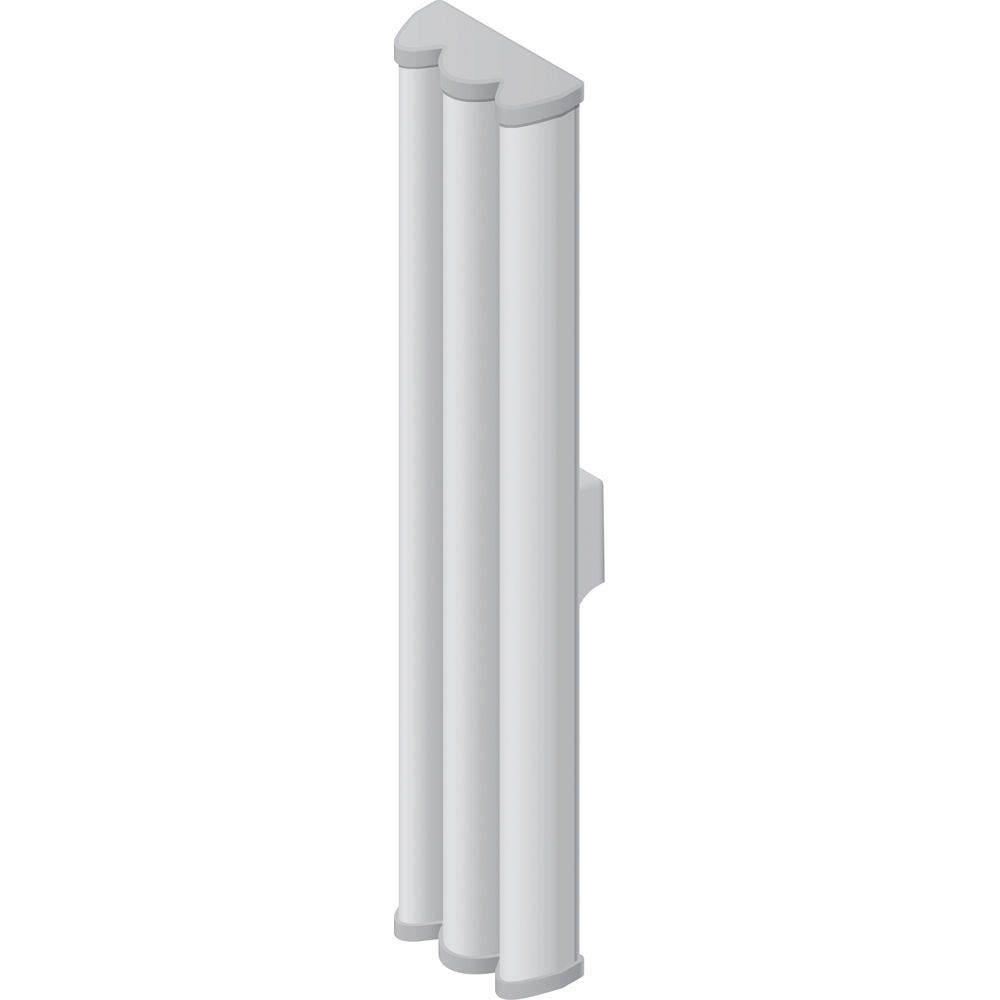

Ubiquiti AM-5AC21-60 5GHz AirMax AC Sector Antenna, 21dBi, 60 deg
Product Code: AM-5AC21-60
As the next generation of 2×2 MIMO sector antennas from Ubiquiti Networks, the airMAX® ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket™5ac radios. They are also compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.
The airMAX ac Sector Antennas are highly resistant to noise interference in co-location deployments. The innovative deflector design, together with the reduced sidelobes and backlobes, reject interference from other transmitters in the area – potentially on the same tower.
Features:
-
2X2 MIMO dual polarity
-
5.10 to 5.85 GHz operating frequency range
-
21 dBi peak gain, 60⁰ beam
-
750 x 173 x 78 mm, 4.8 kg mounted weight
-
25 dB cross polar isolation
-
Finely tuned <1.5:1 VSWR
- All mounting components included.
